    XML is a key technology in PRPC. How to generate the XML which the format you want. You can follow these steps below:

    1. Create an instance of Rule-Obj-XML.

    This XML rule is the rule which will make up the XML you want. For example:

    <?xml version="1.0" encoding="UTF-8"?>
    <UIForm>
    <FormProperty>
    <FormID><pega:reference name = ".FormID" mode="literal" /></FormID>
    <FormName><pega:reference name = ".FormName" mode="literal" /></FormName>
    </FormProperty>
    </UIForm>

    *pega:reference is a common method. Any others please refer to HTML, Directives, and JSP Tags in prhelp.
    *Mode=”literal” means that it will delete the XML especial symbol like “&it;”, “&gt;” and so on.

    2. Create a model to initialize properties.(Optional)

    Model is used to initialize properties. This is an optional step, and you can use Activity’s Property-Set method instead.

    3. Create an Activity to call method Property-Set-XML.

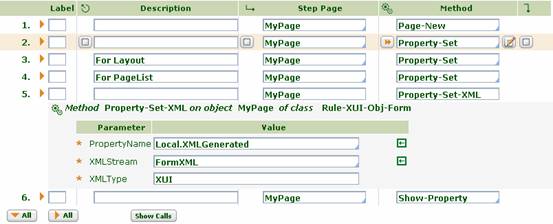

    The most important of XML generation is method Property-Set-XML in Activity. Example Screenshot:

    *XMLGenerated is a local variable defined in Parameter Tab. It is used to save final XML.
    *XMLStream and XMLType have presented in XML rule.

    Generated XML just like this:

    <?xml version="1.0" encoding="UTF-8"?>
    <UIForm>
    <FormProperty>
    <FormID>the value you set for the property .FormID</FormID>
    <FormName>the value you set for the property .FormName</FormName>
    </FormProperty>
    </UIForm>

    Additionally, for ValueList properties, the code in XML like this:

    <pega:forEach name = ".StyleLink">
    <StyleLink><pega:reference name = "$this" mode="literal" /></StyleLink>
    </pega:forEach>

    For PageList properties, you can refer to this code, the precondition is you should use class Code-Pega-List.

    <pega:forEach name="XMLStreamListPage.pxResults">
    <pega:when test="$THIS.pxObjClass = 'Rule-XUI-Obj-TabStrip'">
    <pega:reference name = "$THIS.XMLStream" mode="literal" />
    </pega:when>
    </pega:forEach>

    Copyright by Zolly in Cognizant.
