Dtree是個非常簡單易用的JS類庫，封裝了JS對樹型結構的一些復雜操作，其簡單易用的API能使新手順利的完成動態樹，下載地址為：
http://destroydrop.com/javascripts/tree/
本文結合Struts2.X，Spring2.0，Hibernate3.0整合使用，數據庫為簡單起見使用MySQL，表結構的設計是根據Dtree的結構來的，Dtree基本數據字段如下:
| id |
Number |
Unique identity number. |
| pid |
Number |
Number refering to the parent node. The value for the root node has to be -1. |
| name |
String |
Text label for the node. |
| url |
String |
Url for the node. |
| title |
String |
Title for the node. |
| target |
String |
Target for the node. |
| icon |
String |
Image file to use as the icon. Uses default if not specified. |
| iconOpen |
String |
Image file to use as the open icon. Uses default if not specified. |
| open |
Boolean |
Is the node open. |
SQL腳本如下：
create database exercise;
use database exercise;
create table dtreedemo01(
id varchar(50) primary key,
pid varchar(50),
name varchar(50),
url varchar(50),
title varchar(50),
target varchar(50),
icon varchar(50),
iconopen varchar(50),
opened varchar(50)
);
insert into dtreedemo01 values('0','-1','Root','javascript: void(0);',null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('00','0','音樂','javascript: void(0);',null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0001','00','輕金屬',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0002','00','重金屬',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0003','00','R&B',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('01','0','體育','javascript: void(0);',null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0101','01','籃球',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0102','01','足球',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0103','01','體操',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('02','0','美食','javascript: void(0);',null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0201','02','中國菜',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('020101','0201','青椒找肉',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0202','02','日本菜',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('020201','0202','河夫烤魚',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('0203','02','法國菜',null,null,null,NULL,NULL,NULL);
insert into dtreedemo01 values('020301','0203','爆炒蝸牛',null,null,null,NULL,NULL,NULL);
接下來就是三個框架的整合了，因?yàn)榇宋闹皇墙榻B一下Dtree的使用，所以整合的細節就不說了，直接看展示頁面的代碼.
<%@ page language="java" import="java.util.*" pageEncoding="gbk"%>
<%@taglib prefix="s" uri="/struts-tags"%>
<html>
<head>
<title>DynaTreeDemo</title>
<link rel="StyleSheet" href="css/dtree.css" type="text/css" />
<script type="text/javascript" src="js/dtree.js"></script>
</head>
<body>
<table width="180">
<tr>
<td height="300" valign="top">
<script type="text/javascript">
tree = new dTree('tree');
tree.config.folderLinks=false;
tree.config.useCookies=false;
<s:iterator value="#request.treeList">
tree.add("<s:property value="id"/>",
"<s:property value="pid" />",
"<s:property value="name" />",
"<s:property value="url" />",
"<s:property value="title" />",
"<s:property value="targer" />",
"<s:property value="icon" />");
</s:iterator>
document.write(tree);
</script>
</td>
</tr>
</table>
</body>
</html>
上文中的treeList為在后端控制器獲取到的數據，在JSP頁面中使用Struts2標簽迭代集合實現javascript與S2的交互。

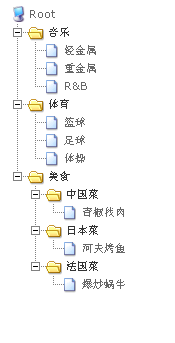

效果如圖：
這種實現方法的一個缺點是，當有大量的數據時也是一次性查詢出來傳遞到Dtree封裝好的遞歸方法中，影響效率.
去除了S2SH的Jar，下載地址：
http://www.tkk7.com/Files/Mars/dtreedemo.rar
